5 Common Flow System Problems and How the Right Check Valve Can Help Solve Them

Check valves do much more than control flow. The right valve can improve system efficiency, protect critical equipment, reduce maintenance requirements, and support long-term reliability. Conversely, the wrong valve can contribute to pressure losses, energy waste, equipment wear, and recurring operational challenges. These impacts make valve selection a system performance decision rather than simply a component specification.

Many of the most common issues engineers face, including backflow, excessive pressure drop, water hammer, unnecessary system complexity, and rising maintenance costs, can often be traced back to check valve technology that is poorly matched to the application’s operating conditions and performance requirements. While these challenges may appear unrelated, their cumulative effect can reduce efficiency, increase operating costs, and shorten the life of pumps, compressors, piping systems, and other critical equipment.

The good news is that many of these problems can be avoided through application-driven check valve selection. By understanding system requirements, operating conditions, and long-term performance objectives, engineers can identify valve technologies that improve reliability, enhance efficiency, and reduce total lifecycle costs.

In this article, we’ll examine five common flow system problems and explore how selecting the right valve technology can help improve performance, protect equipment, and support reliable operation over the long term.

At A Glance: Five Common Flow System Problems

1. Backflow Can Damage Equipment

When a pump shuts down or system pressure shifts, fluid looks for the path of least resistance, and sometimes that path runs backward. While this may seem like a minor issue, reverse flow can place significant stress on critical equipment exposing them to conditions they were never designed for and disrupt downstream processes. Over time, repeated backflow events can contribute to premature wear, reduced reliability, and increased maintenance requirements.

What to evaluate:

• What type of media is being handled? Is it clean, dirty, or abrasive?
• What are the operating pressures and flow rates?
• What cracking pressure is needed for the valve to open reliably?
• What is the potential impact of reverse flow on downstream equipment?
• Are there additional requirements for surge protection or water hammer reduction?

How the Right Check Valve Helps

Check valves are designed to automatically prevent reverse flow without requiring operator intervention. However, not all check valve technologies perform the same way. Factors such as pressure drop, flow efficiency, closing characteristics, and maintenance requirements can significantly impact long-term performance. Selecting a valve designed around the application’s operating conditions helps improve equipment protection while supporting overall system efficiency.

For applications where low pressure drop and flow efficiency are priorities, high-flow check valve designs like US Valve’s IRX technology and Champion check valve options can help minimize restrictions while providing reliable backflow prevention.

2. Excessive Pressure Drop Robs System Performance

Every valve introduces some resistance to flow, but when that resistance is excessive this pressure drop can have significant impact on overall system performance. As fluid moves through a restrictive valve, energy is lost, requiring pumps, compressors, and other equipment to work harder to maintain desired flow rates. Over time, these inefficiencies can increase operating costs, reduce available flow capacity, and place unnecessary strain on critical equipment.

While one check valve may not create a significant issue on its own, the cumulative effect of all valves across the system can be substantial, particularly in those that operate continuously. This is why pressure drop should be evaluated during valve selection and also as part of a system’s long-term efficiency and lifecycle cost strategy.

Excessive restriction can also increase fluid velocity within a check valve. Under certain operating conditions, these higher velocities can contribute to cavitation, where vapor bubbles form and collapse as pressure recovers. Over time, cavitation can accelerate wear, damage valve and piping components, and potentially introduce contaminants into the process stream. This can be particularly important in applications where reliability, equipment protection, and fluid cleanliness are critical.

What to evaluate:

• What flow capacity does the system require?
• How heavily loaded are the pump, blower, or compressor?
• What are the energy consumption targets?
• What is the valve’s Cv?
• What will the pressure loss cost over the life of the system?

How the Right Check Valve Technology Helps

Reducing pressure drop starts with selecting check valve technologies designed to maximize flow efficiency. Look for high Cv performance, optimized flow paths, reduced flow restrictions, and low-turbulence designs to help minimize energy losses while supporting consistent performance.

US Valve’s engineering philosophy is built around reducing restriction and improving performance. Technologies such as elastomer hinge check valves eliminate many of the flow restrictions found in conventional check valve designs, helping maximize usable flow area while reducing pressure loss. Likewise, hybrid ball/check valves combine shutoff and backflow prevention in a compact design engineered for high Cv performance and low pressure drop, allowing users to maintain efficiency without sacrificing functionality.

3. Water Hammer and Pressure Surges Can Stress Components

Water hammer occurs when flow changes abruptly, creating pressure waves that travel through a piping system. For example, the flow slows, stops, and then starts to reverse. If the check valve is slow to close, reverse velocity builds before the disc seats, and the sudden stop produces a surge. These pressure surges can place significant stress on valves, pumps, piping, instrumentation, and other critical components.

While a single surge event may not cause immediate damage, repeated surges can contribute to premature wear, reliability issues, increased maintenance requirements, and unexpected downtime. Because water hammer is often a symptom of system dynamics rather than a single component failure, it is important to consider surge protection during the valve selection process. Choosing the appropriate valve technology can help control flow response and reduce the impact of hydraulic shock throughout the system.

For systems that use gas instead of water, related pulsation and slam issues can occur.

What to evaluate:

• How often do pumps start and stop?
• What is the flow velocity in the line?
• How sensitive is the downstream equipment to pressure spikes?
• How quickly and how gently does the valve close?
• What would repeated surge damage cost in repairs and downtime?

How the Right Check Valve Technology Helps

Check valve selection plays an important role in minimizing the effects of water hammer and pressure surges. Check valves with fast response characteristics, short travel distances, and controlled, non-slam closure can help reduce hydraulic shock and limit stress on pumps, piping, instrumentation, and other system components.

US Valve offers multiple check valve technologies designed to meet different system requirements, including solutions that help reduce surge events while maintaining reliable backflow prevention. Selecting the right technology for the application’s flow conditions, operating profile, and equipment sensitivity can improve system reliability, reduce maintenance requirements, and help extend equipment life.

4. Unnecessary Components Create Complexity and Leak Paths

In many systems, separate valves are installed to provide shutoff capability and backflow prevention. While this approach can meet functional requirements, it often increases piping complexity, consumes valuable installation space, and adds additional connection points throughout the system. As systems become more complex, installation, maintenance, and troubleshooting can become more challenging.

Every added component introduces another potential leak path and another maintenance consideration. As systems become more complex, installation, troubleshooting, and repairs can become more challenging. Over time, these factors can affect reliability, increase downtime risk, and contribute to higher lifecycle costs.

What to evaluate

• How much installation space is available?
• How many separate valve functions does the line require?
• How many connection points does the design create?
• How easy will the assembly be to install and service?
• What are the long-term reliability goals?

How the Right Valve Technology Helps

In applications requiring both positive shutoff and backflow prevention, integrated valve solutions can help simplify system design. Hybrid ball/check valves combine both functions within a single compact assembly, reducing the number of valves, fittings, and connections required in the flow path.

By consolidating functionality into one valve body, engineers can reduce installation footprint, simplify piping layouts, minimize potential leak paths, and lower overall system complexity while maintaining the required performance characteristics.

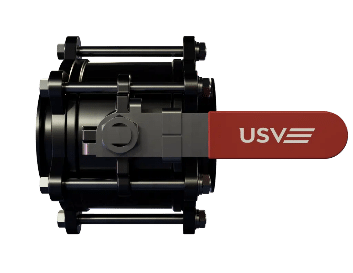

US Valve’s IRX-B is an example of this approach, delivering shutoff and backflow prevention in a single valve. For systems where space is limited or reducing connection points is a priority, combining these functions can simplify installation, improve serviceability, and support long-term reliability.

5. Rising Maintenance and Lifecycle Costs

Purchase price is often the easiest number to compare, which can make it easy to overweight during the selection process. In reality, the cost of a valve extends far beyond the initial purchase. Energy consumption, maintenance labor, replacement frequency, downtime, and the impact on surrounding equipment can all contribute significantly to the total cost of ownership over the life of a system.

A lower-cost check valve may look like a savings opportunity during procurement. However, if it creates excessive pressure drop, requires frequent maintenance, or contributes to premature equipment wear, those costs can quickly outweigh any upfront savings. Evaluating valve solutions based on long-term performance and lifecycle value often leads to better reliability and lower overall operating costs.

What to evaluate

• How often will the valve require maintenance, and how much labor is involved?
• What impact will it have on energy consumption?
• What is the cost of downtime if the valve fails?
• What service life can be expected under operating conditions?
• How will the valve affect pumps, compressors, and other system components?

How the Right Check Valve Technology Helps

The solutions to the previous challenges all contribute to lower lifecycle costs. High-flow, low-pressure-drop designs can reduce energy demand. Effective backflow prevention can help protect pumps and other critical equipment. Integrated valve solutions can reduce component count, leak paths, and maintenance requirements.

In some applications, efficient check valve designs can also create opportunities to optimize overall system design. Reduced pressure losses may allow engineers to optimize sizing for pumps, piping, or related components, helping lower installation costs, reduce footprint requirements, and improve overall system efficiency.

Tying these together is an engineered application fit. US Valve’s approach is to match the technology to the operating conditions and performance goals, so the valve delivers value across its whole service life and not only on day one.

Conclusion

Backflow, pressure drop, water hammer, unnecessary components, and rising maintenance costs may seem like separate system challenges. In many cases, however, they can be traced back to a single root cause: selecting a valve based primarily on pipe size or upfront cost instead of application requirements.

Successful valve selection starts with understanding the application. By evaluating operating conditions, performance objectives, flow requirements, maintenance expectations, and lifecycle costs early in the design process, engineers can identify valve technologies that support long-term system performance and reliability.

The right valve does more than control flow. It helps protect equipment, improve efficiency, reduce maintenance demands, and lower the total cost of ownership throughout the life of the system. The most effective valve is not necessarily the lowest-cost valve or the most commonly specified valve. It is the valve technology that best matches the application’s operating conditions, performance requirements, and long-term reliability goals.
