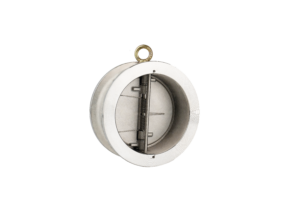

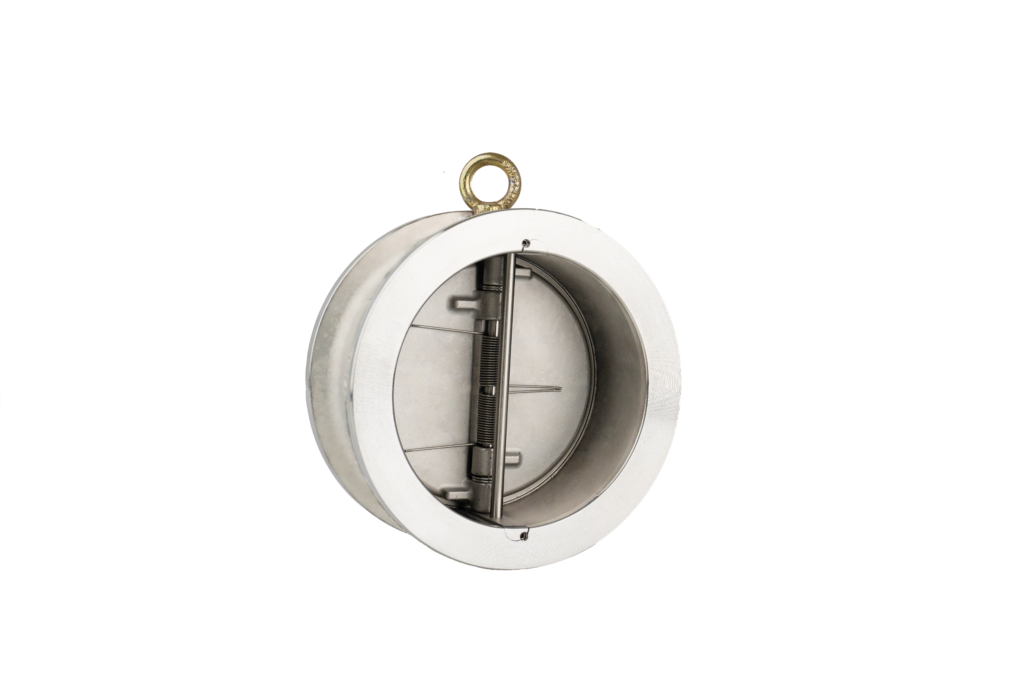

CVR Series Dual Disc Metal Hinge Check Valves

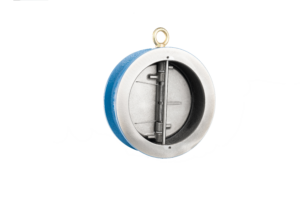

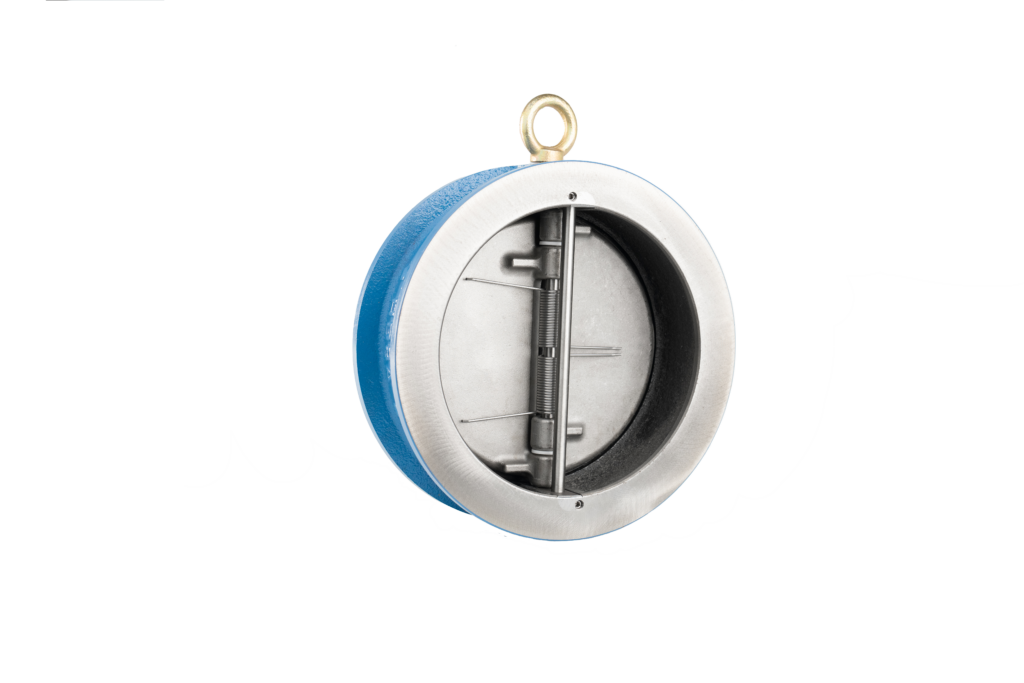

CVR Series Dual Disc Metal Hinge Check Valves view 2

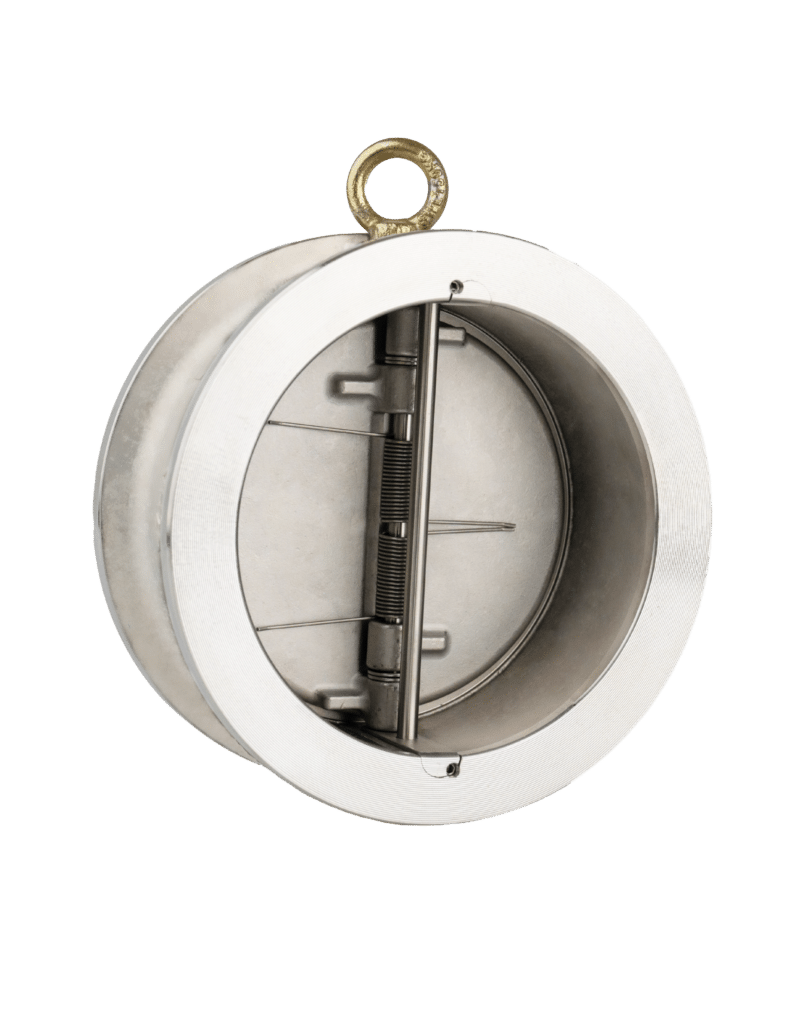

CVR Series Dual Disc Metal Hinge Check Valves view 3

CVR Series

Champion Valve’s CVR retainerless dual‑disc wafer check valves deliver high‑integrity, spring‑assisted closure in a compact, ultra‑lightweight body engineered for demanding flow regimes. The dual‑disc geometry and precision‑calibrated torsion springs provide exceptionally low cracking pressure, enabling stable opening at minimal flow rates while maintaining high Cv values and low pressure drop across the valve. During shutdown or flow reversal, the spring‑loaded discs close rapidly and uniformly, significantly reducing hydraulic shock and water hammer to protect downstream equipment.

Contact Sales

Champion’s CVR valves deliver low pressure drop, rapid disc responsiveness, and reliable performance across water, oil, gas, chemical, and general service systems: making them a trusted choice for industries where “low cracking pressure,” “positive closure,” and “alleviated water hammer” are essential.

  • Lightweight Dual‑Disc Design: Up to “80% to 90% less than conventional full‑body swing check valves”, reducing structural load and installation costs.
  • Retainerless Construction: Eliminates external fasteners for enhanced safety in high‑pressure or hazardous media applications.
  • Low Cracking Pressure: Discs open to “85 degrees” for minimal pressure drop and efficient flow.
  • Spring‑Loaded Closure: Springs are “calculated to increase the responsiveness of the discs”, ensuring fast, reliable shutoff.
  • Water Hammer Reduction: Spring‑assisted closure “alleviates water hammer and resultant damaging effects”.
  • Extended Long‑Leg Spring: Prevents “seat wear caused by scrubbing” for longer service life.
  • Versatile Installation: Suitable for horizontal or vertical pipelines; ideal for water, oil, gas, chemicals, and compressed air systems.
  • Wide Material Availability: Offered in carbon steel, stainless steel, aluminum bronze, Monel®, Alloy 20®, and more.
  • Multiple Seat Options: Buna‑N®, EPDM, Viton®, metal seats, and high‑temperature alloys for tailored performance.
  • ASME & API Compliant: Meets ASME B16.1, B16.5, B16.34, API 594/598, and other key industry standards.
SpecificationRange / Options
Size 2"-36"
Max Pressure 200-3705 psig
Seal Material Buna, Integral Metal, EPDM, 316SS, Viton
Disc / Internal Material Aluminum Bronze, 316SS, 304SS
Body Material Ductile Iron, 316SS, Carbon Steel
Spring Material 316SS, X750
End Connections Wafer
ASME Class 125, 150, 300, 600, 900, 1500

Downloads

Type File Name Downloadable File
CAD Model CAD-COMING-SOON PNG
