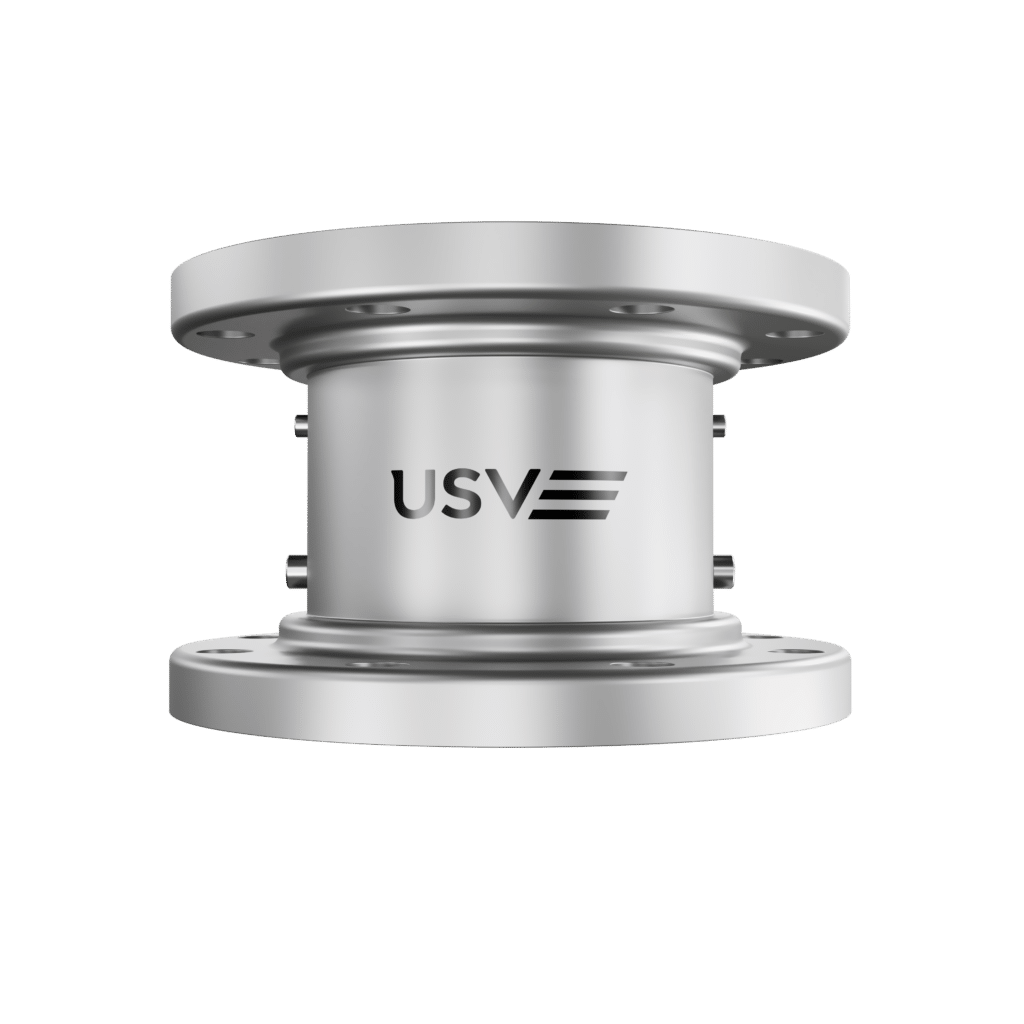

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves

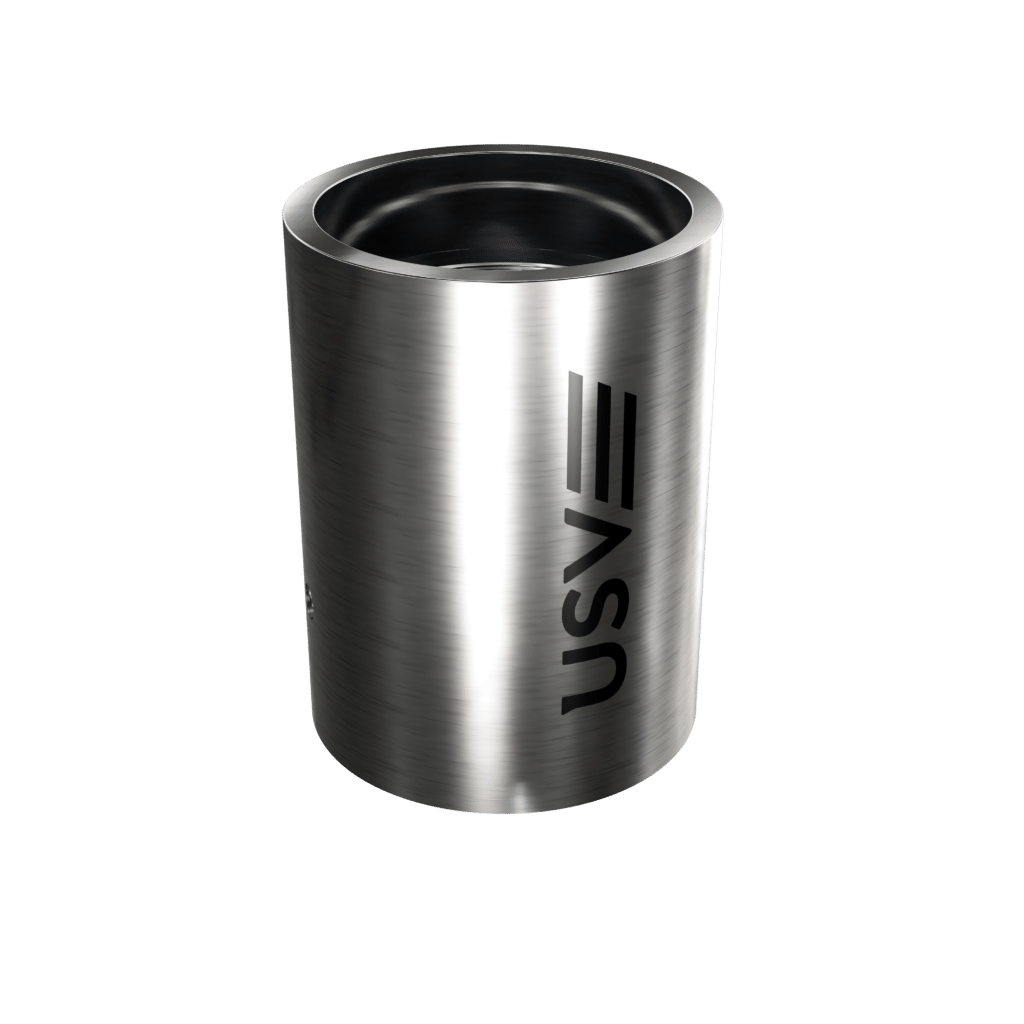

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 2

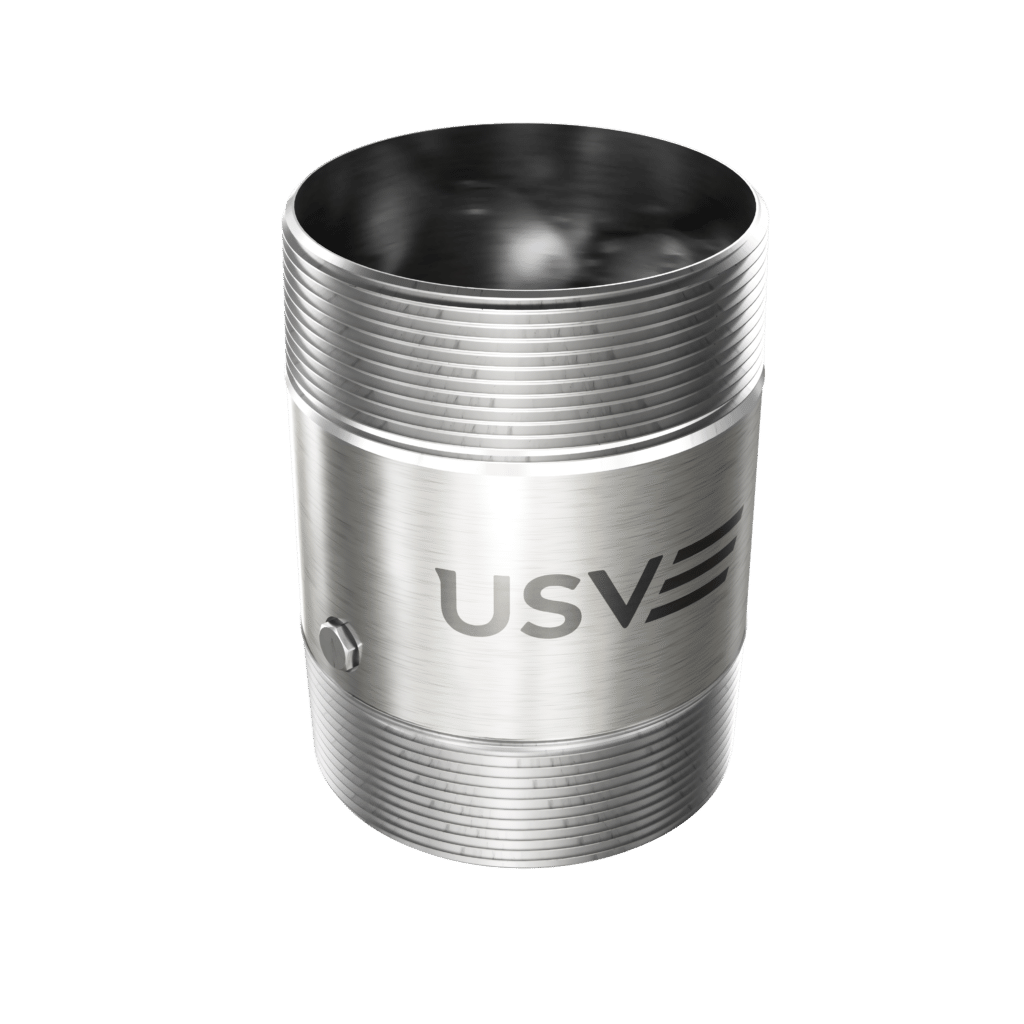

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 3

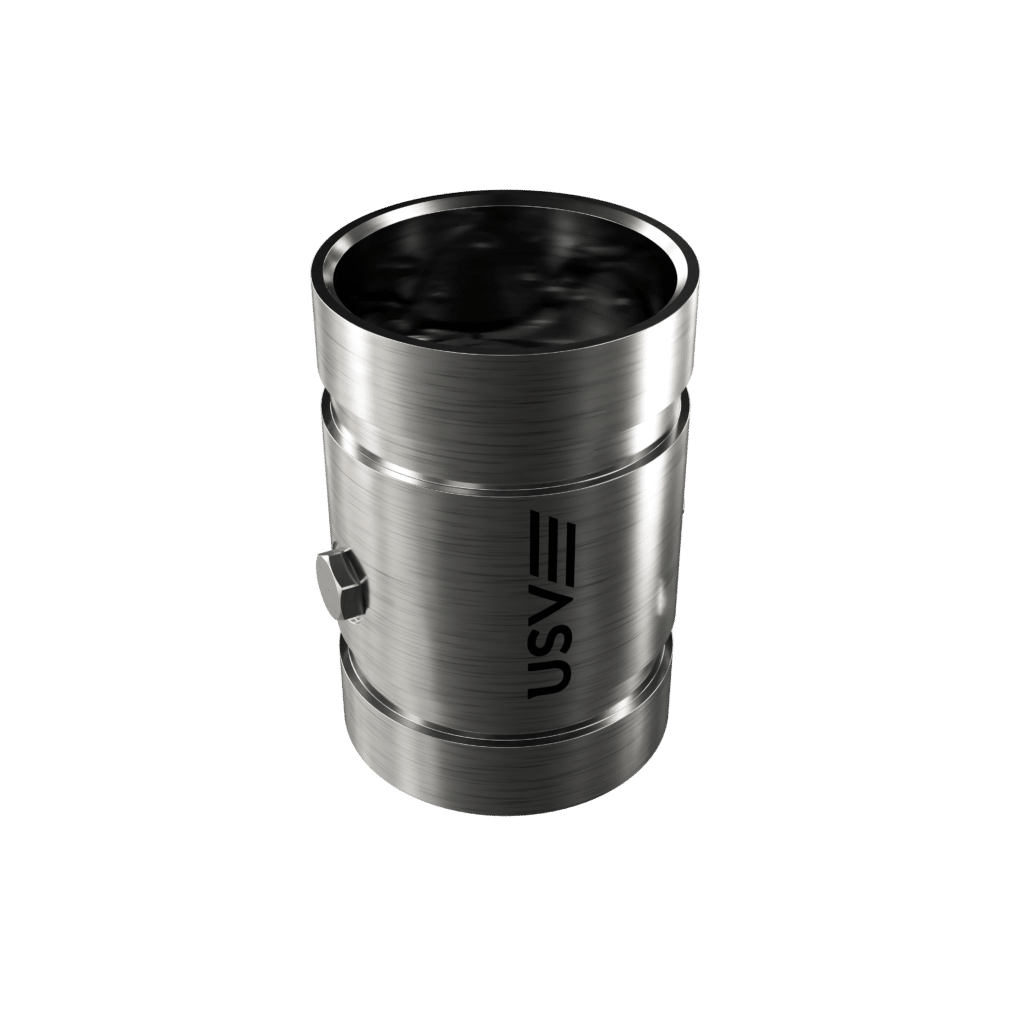

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 4

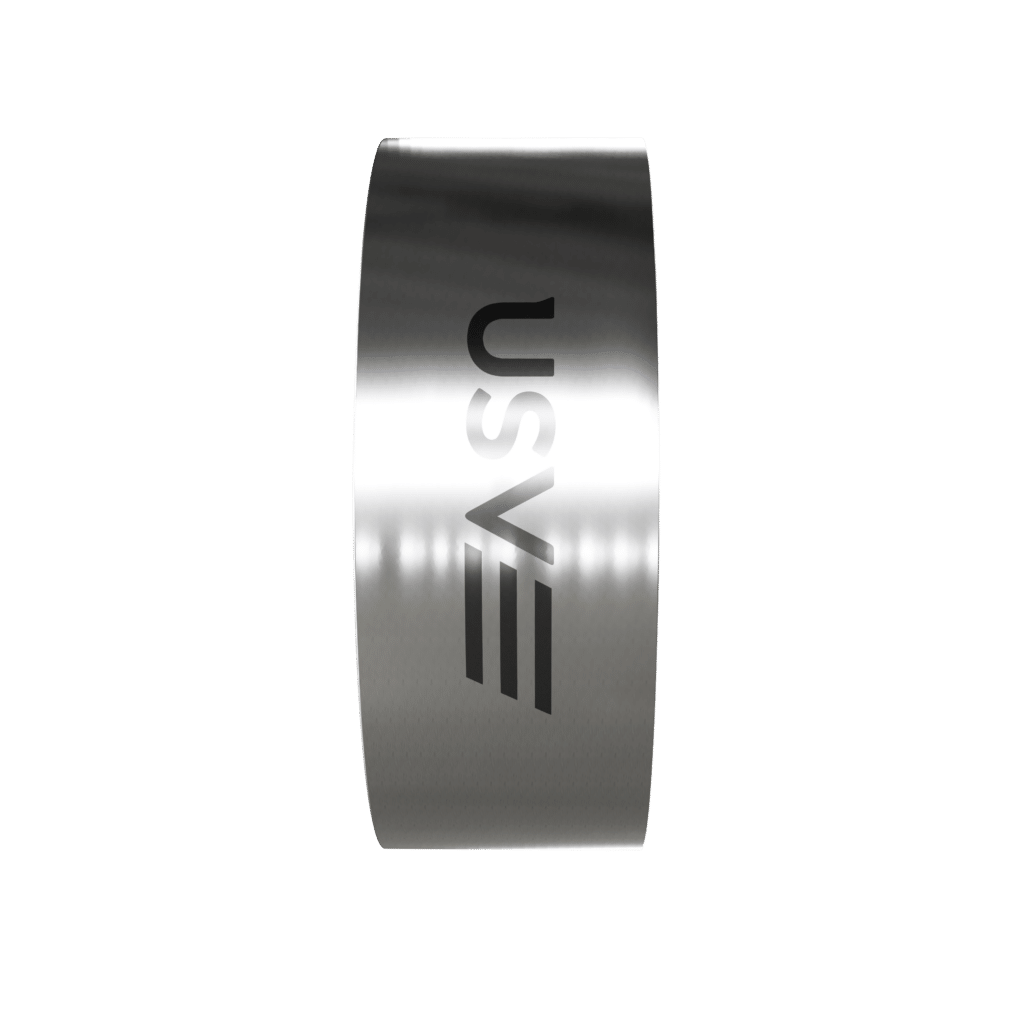

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 5

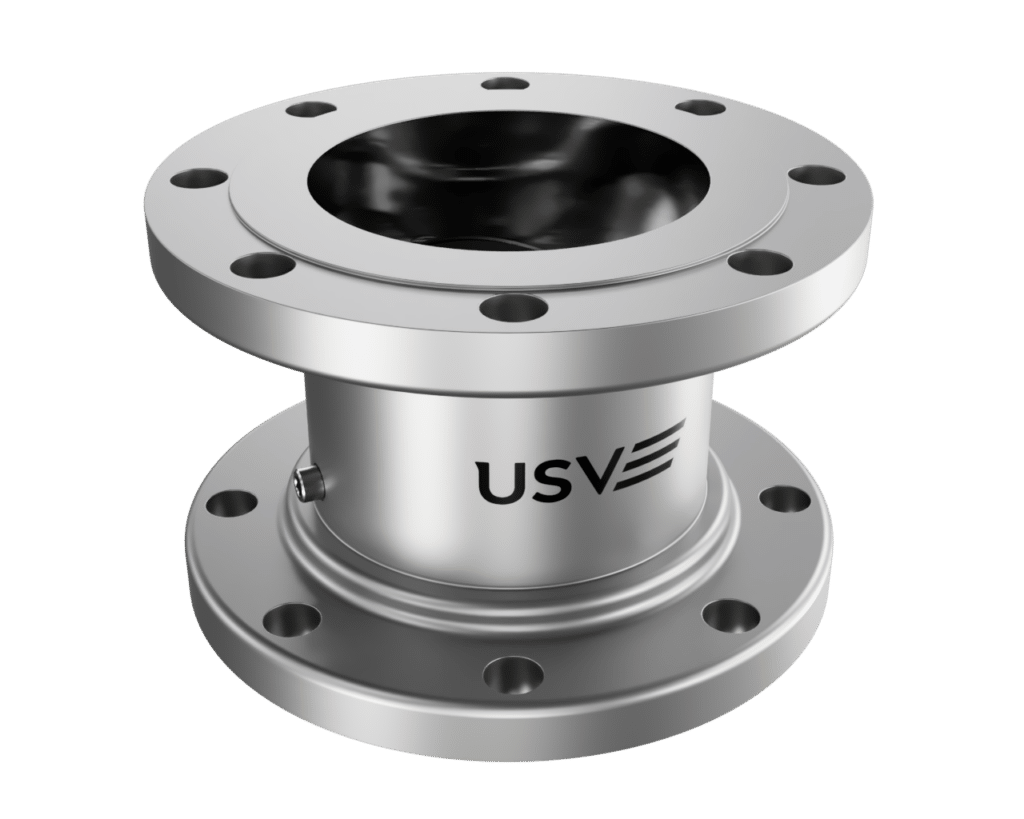

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 6

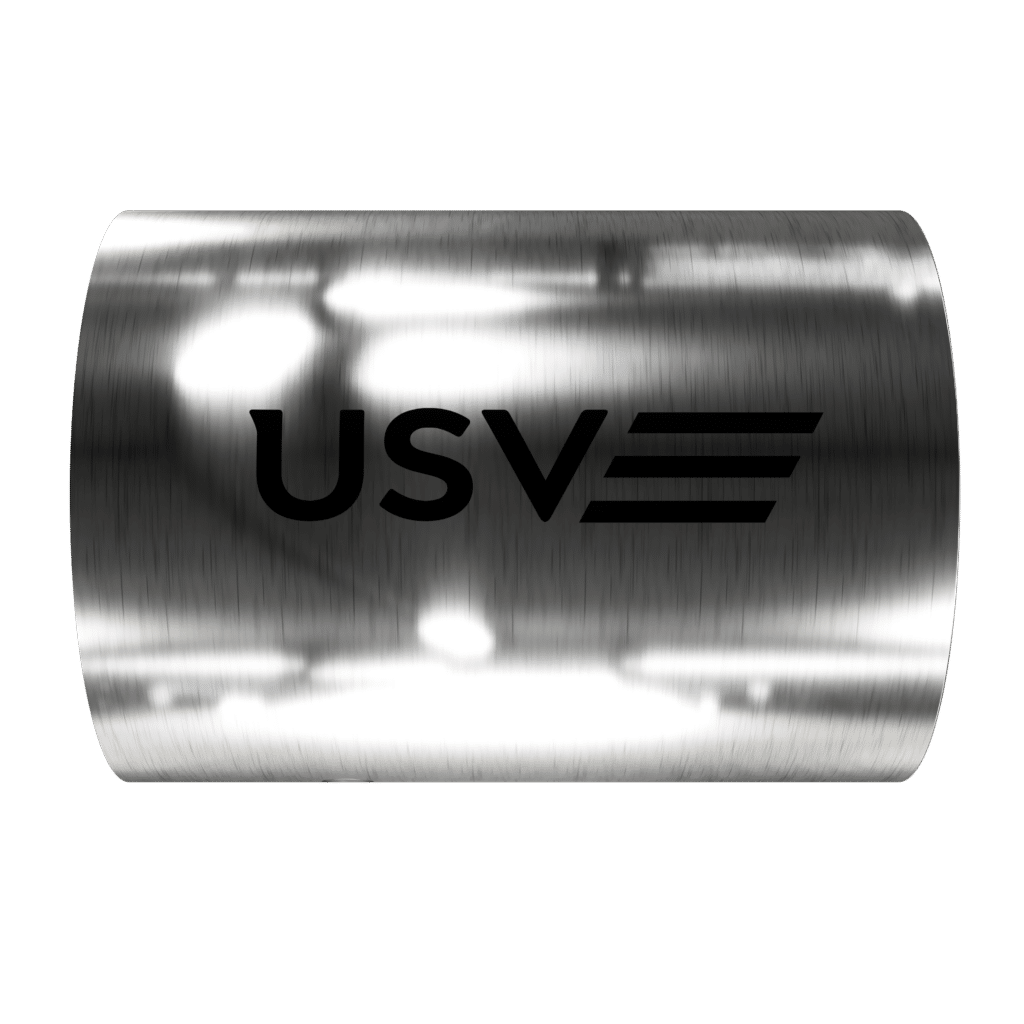

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 7

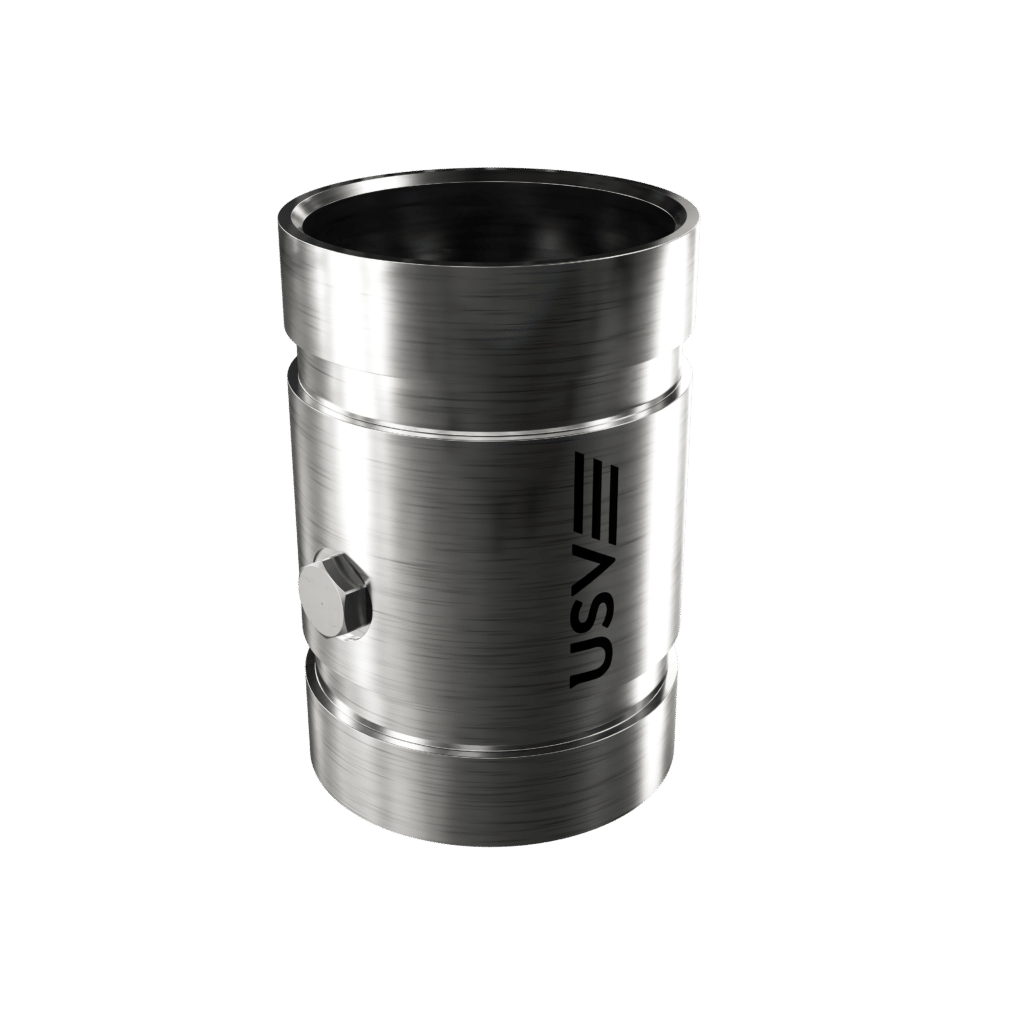

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 8

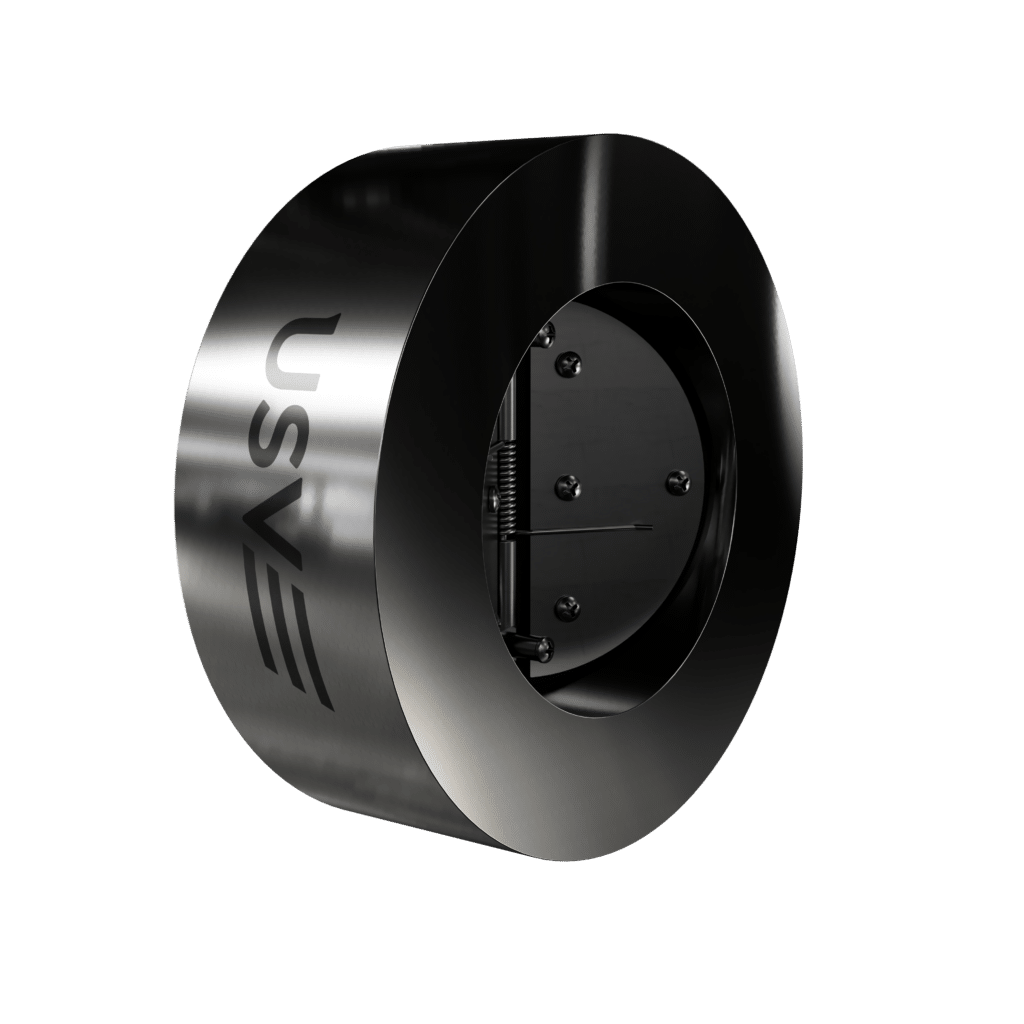

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 9

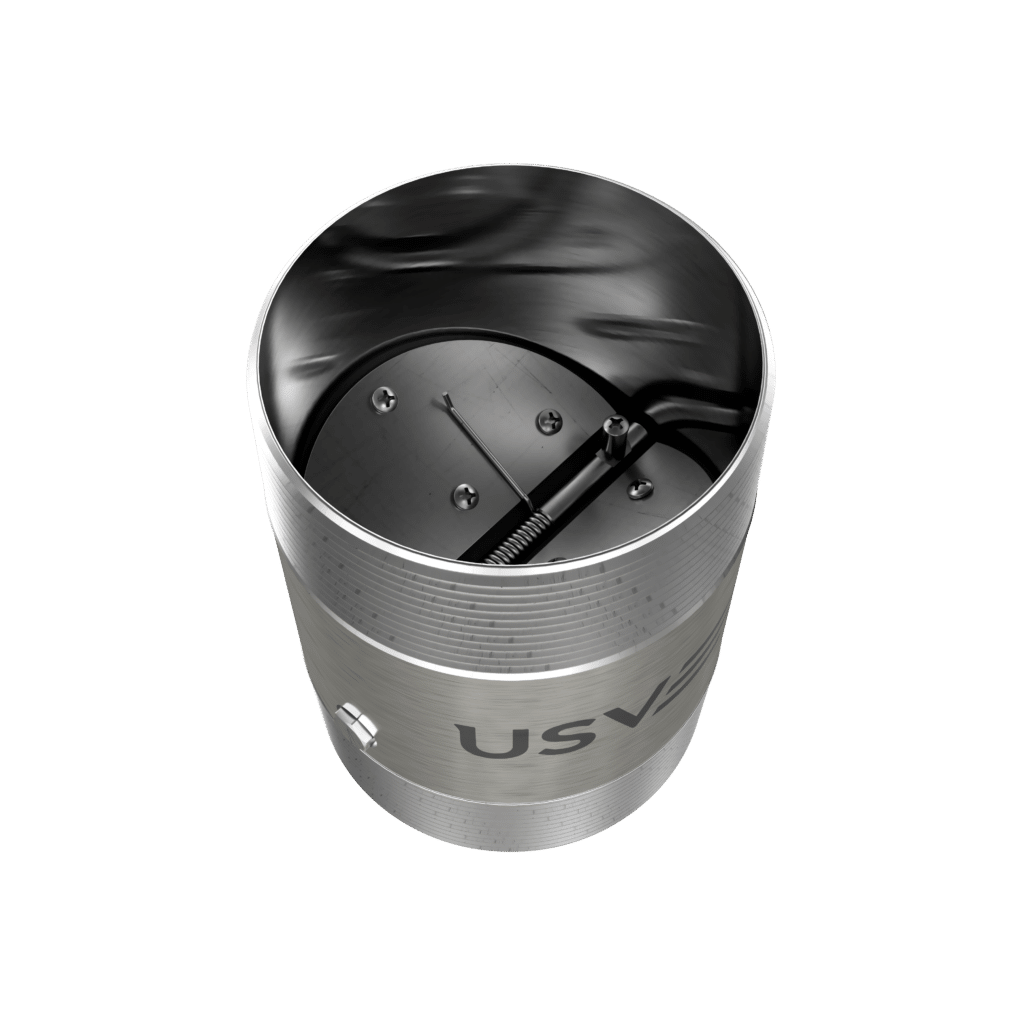

Techno EHW, 07, 09, 11, 17 & 19 Series Dual Disc Elastomer Hinge Check Valves view 10

EHW, 07, 09, 11, 17 & 19 Series

The Techno EHW and USV elastomer hinge check valve family covers the broadest size and connection range in the USV lineup: from 1" threaded to 30" wafer: built around the original Techno elastomer hinge design that has set the standard for low pressure drop check valves since 1952.

Contact Sales

Five series across five end connection types, in sizes from 1" through 30". The elastomer hinge eliminates the restrictive valve seat found in conventional check valves, delivering higher Cv and lower pressure drop in every configuration. Each series is available in multiple body materials with five elastomer options to match chemical and temperature requirements.

  • Eliminates water hammer in pumping and blower systems
  • Elastomer hinge design removes the restrictive seat: higher Cv and lower pressure drop than conventional check valves
  • Available in multiple end connections (wafer, grooved end, FNPT depp well, flanged)
  • Seal options for varying temperatures available across all: Buna: -60°F to 225°F | EPDM: -40°F to 250°F | Silicone: -100°F to 500°F | Viton: -20°F to 400°F
  • Works in any orientation including vertical up flow and downflow
  • NSF 61 and NSF 372 certified options available
  • Ships from stock
  • 100,000+ parts on hand
SpecificationRange / Options
Size 1-30"
Seal Material Buna, EPDM, PTFE, Silicone, Viton
Disc / Internal Material 316SS, Aluminum, Brass
Body Material 316SS, Aluminum, Brass, Carbon Steel, Cast Iron
Spring Material 316SS, 316SS Light
End Connections Flange, FNPT - Deep Well, Groove End, MNPT, Wafer
ASME Class 125
Brand Techno, US Valve

Downloads

Type File Name Downloadable File
Brochure USV-Elastomer-Hinge-Check-Valve-Service-Life PDF
Brochure Wafer-Brochure-2301014-0623 PDF
Brochure TECHNO-Elast-Hing-Wafer-Brochure-2306039-0623 PDF
Brochure MNPT-Brochure-2301010-0623 PDF
Brochure Flanged-Brochure-2301012-0224 PDF
Brochure Deep-Well-Brochure-2301016-0723 PDF
CAD Model Elastomer-Hinge-Grooved-End_11X-4-4SPB-2 STEP
CAD Model Elastomer-Hinge-Deep-Well_4in-Deep-Well-Model STEP
CAD Model Elastomer-Hinge-Flanged_6in-19-Series-with-Spring STEP
CAD Model Elastomer-Hinge-MNPT_07400-00 STEP
CAD Model Elastomer-Hinge-Wafer_09-0-0SPE-4 STEP
